LED MOVING HEAD LIGHT BSWF/TV-LED1000

TV-LED1000

1050W LED Engine profile with framing and CMY function. Dedicated to fulfilling the demand of large performances and Theater installations. Read More +

icon_ce

CE Certification

icon_iso

ISO Standards

icon_rohs

RoHS Certificate

light

Light Source

1,050W LED Engine

sun

Color System

CMY+CTO(3200K-6700K)

heart

CRI

Standard: Ra≥70; HCRI: Ra≥95

Power

1260W(220V)

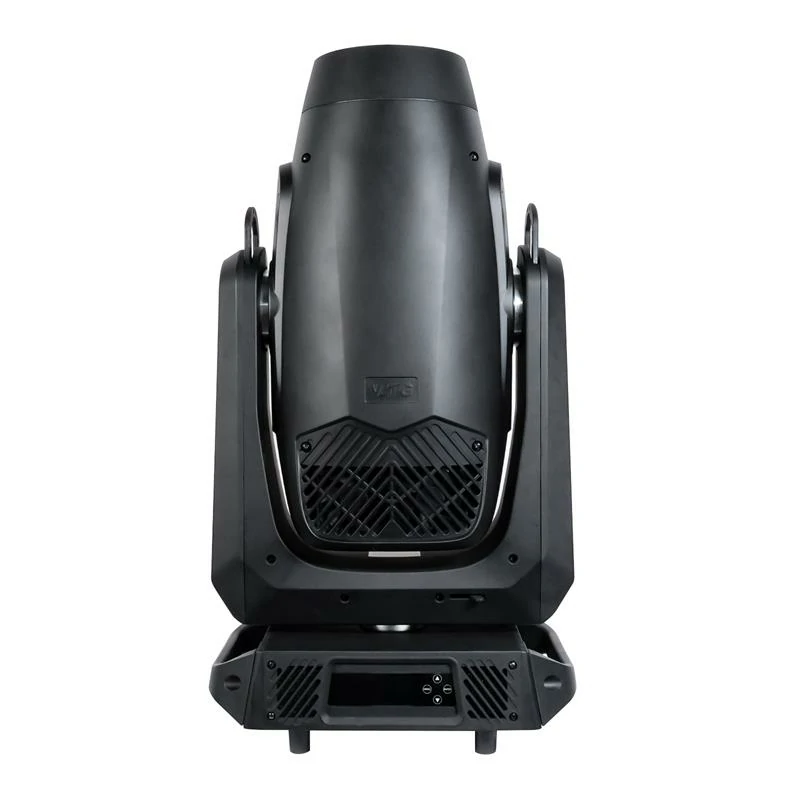

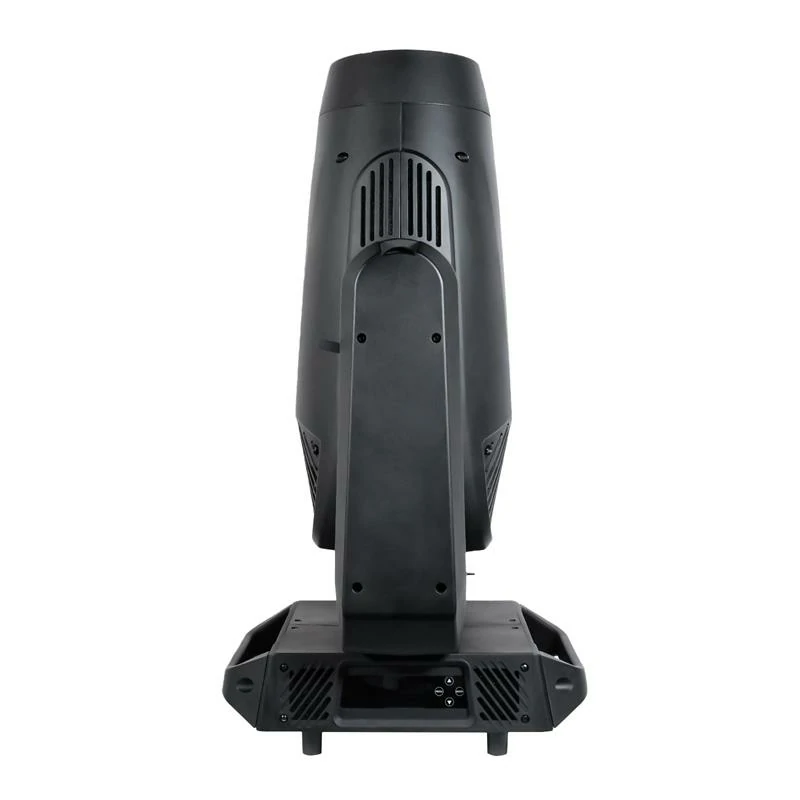

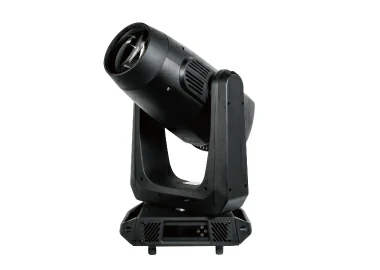

LED1000 Profile Moving Head Light

Product Description

Appearance and light effect

LED PROFILE MOVING HEAD LIGHT BSWF/TV-LED1000 adopts 1,050W White LED Module, which has a stylish appearance and efficient optical system. With three noise modes (Auto, Theater, Silent), the system balances performance and low noise for versatile environment adaptation.

Excellent optical system

With razor-sharp focus and powerful beam output, it delivers striking visual impact for stage performances. The advanced optical system, combined with CMY color mixing and CTO temperature correction, ensures precise, pure, and vibrant color control.

Characteristics of the product

● Light source: 1,050W LED module (lifespan: ≥20000h)

● CRI: TV-LED1000: 70+, TV-LED1000H: 95+

● CMY+CTO(3200K-6700K)

● Linear dimmer from 0% to 100%

● Fixed color wheel with 5 dichroic colors + White

● 1 fixed gobo wheel with 8 gobos + Open

● 1 rotating gobo wheel with 6 replaceable gobos + Open

● Framing: 4 blades move separately with +/- 60°rotation of the full system

smooth, flexible blade movements at variable speed

Specification

ModelTV-LED1000
Optical System– Light Source: 1,050W LED Module (Lifespan: ≥20000h)

– Fixture Output: 26200lm

– Color Temperature: 6700K

– Standard Mode: Ra≥70;  HCRI Mode: Ra≥95;

Movement– Pan/Tilt: 540/270° (16 bit)

– Pan & Tilt lock

– Auto X/Y repositioning

Color System– Linear CMY color mixing

– Linear CTO(3200K-6700K)

– Fixed color wheel with 5 dichroic colors +White

Gobo System– 1 fixed gobo wheel with 8 gobos + Open

– 1 rotating gobo wheel with 6 replaceable gobos + Open

– 1 effect wheel

Framing System– 4 blades move separately with +/- 60°rotation of the full system

smooth, flexible blade movements at variable speed

Effects– Zoom: 5.5°-50°

– Prism: Rotating 4-facet circular prism

– Frost filters: 2 separate, variable frost filters (light and medium)

– Electronic Dimming: 0-100%

– Iris: Motorized iris

– Strobe:1-25 Hz

Work Environment– Protection Rating: IP20

Working Environment: -10℃-  45℃

Electric Parameter– Power Supply: 100~240V, 50/60Hz

– Power: 1260W(220V), power factor: PF ≥0.98

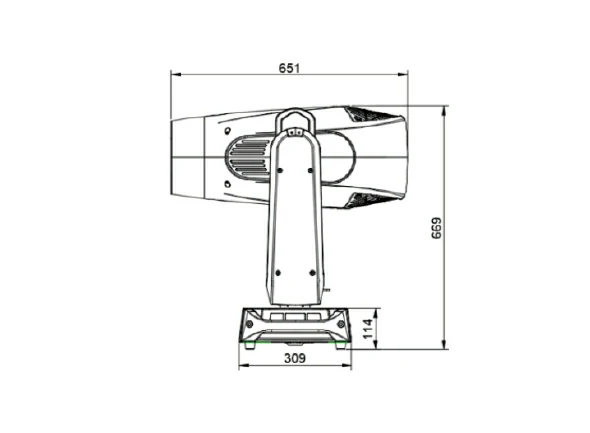

Dimension and weight– Product Size: 870*467*309mm

– Net Weight: 46kgs

Control

DMXchannel: 37/50 CHArt-net Ethernet control protocol, SACN protocol, RDM compatible

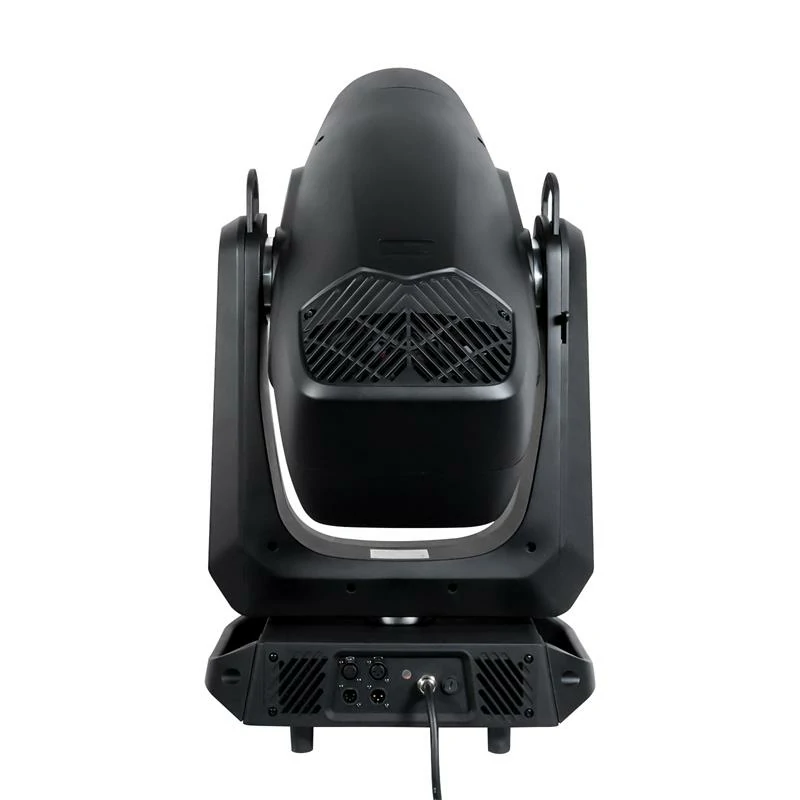

Signal input/output: 5pins & 3pins XLR, RJ45 interface

Power: PowerCON TRUE1 Power input

Video of TV-LED1000

STAGE LIGHTING EFFECTS

Suitable for large-scale concerts, stage performances, theatres, television studios, lighting projects, exhibitions.
