Outdoor Moving Head Light_Beacon Plus 480 IP

Beacon Plus 480 IP

A high-power IP65-rated moving head with a Philips 480W light source, linear CMY+CTO mixing, dual gobo wheels, dual prisms (6+8), and an ultra-narrow to wide 1.8°-30° zoom. Read More +

Get a Quote

CE Certification

ISO Standards

RoHS Certificate

480w Waterproof Spot Moving Head Light-BSW

Light Source

PHILIPS 480W

Color Temperature

7800K

Protection Level

IP65

Net Weight

23.5kgs

Outdoor Moving Head Light_Beacon Plus 480 IP

Products Brochure

Product Description

Appearance and light effect

This IP65-rated moving head delivers powerful output from a Philips 480W lamp with linear CMY color mixing and CTO, along with dual color wheels and dual gobo wheels for versatile effects.

It features a 1.8°-30° zoom range, 6+8 prism, light frost, 1-25Hz strobe, and operates quietly at 43dB in Auto Mode.

Characteristics of the product

Light source: Philips 480W, 7800K, ≥1500h
Zoom: 1.8° – 30°
Color: Linear CMY + CTO
Gobo: 11 fixed + 7 rotating
Prism: 6 + 8
Strobe: 1–25Hz
IP rating: IP65
Noise: 43dB (Auto Mode)
Weight: 23.5kg
DMX: 25/28 CH, RDM

Specification

Model	Beacon Plus 480 IP
Optical System	– Light Source: PHILIPS 480W (lifespan: ≥1,500h) – Color temperature: 7800K – Linear CMY color mixing – Linear CTO
Movement	– Pan/Tilt: 540/270° (16 bit) – Pan & Tilt lock – Auto X/Y repositioning

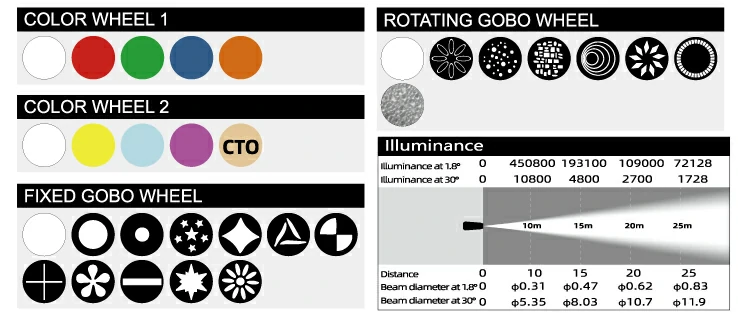

Color System	– 1 Fixed color wheel with 4 dichroic colors + White – 1 Fixed color wheel with 3 dichroic colors + CTO 3200K + White
Gobo System	– 1 fixed gobo wheel with 11 gobos + Open – 1 rotating gobo wheel with 7 replaceable gobos + Open
Effects	– Prism: 6 + 8 prism – Frost filters: Light
Work Environment	– Protection Rating: IP65 – Working Environment: -10℃- 40℃
Electric Parameter	– Power Supply: 100~240V, 50/60Hz – Power: 580W(220V)
Dimension and weight	– Product Size: 351×336×658mm – Net Weight: 23.5kgs
