LED7*40W Bee Eyes Wash Moving Head

Chroma Flux 740F

7x40W RGBW Wash Moving Head: Bright, Versatile & Precision-Controlled. Read More +

Get a Quote

CE Certification

ISO Standards

RoHS Certificate

Light source

7*40W RGBW LEDs

Power

289W

Zoom

3° - 60°

Net Weight

5.6kgs

LED7*40W Bee Eyes Wash Moving Head

7x40W RGBW LED moving head with 3°-60° electronic zoom, 540°/270° movement, and versatile effect macros.

Products Brochure

Product Description

Appearance and light effect

This RGBW LED moving head features 7 x 40W 4-in-1 LEDs with a wide 3°-60° electronic zoom and variable color temperature (2,800K–7,000K).

It offers precise pan/tilt positioning, full-range dimming, 1-25Hz flicker, built-in color/beam/bee-eye effects, and supports DMX512, auto, voice, master/slave, and RDM control.

Characteristics of the product

Light Source: 7 x 40W RGBW 4-in-1 LEDs
LED Lifespan: ≥50,000 hours
Zoom Angle: 3° – 60° (motorized electronic)
Color Temp: 2,800K – 7,000K
Pan/Tilt: 540° / 270° with auto correction
Dimming: Full-range, 65536 levels
Flicker/Strobe: 1 – 25Hz
Control: DMX512, Auto, Voice, Master/Slave, Manual, RDM
DMX Channels: 21/24/32/60 CH
IP Rating: IP20
Power: 289W
Voltage: AC100-240V, 50-60Hz
Weight: 5.6kg

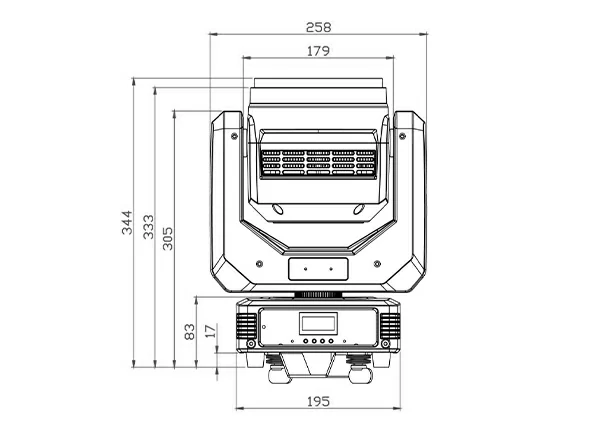

Size: 344*258*178mm
Display: LCD screen
Housing: ABS high-temperature resistant engineering plastic

Specification

Model	Chroma Flux 740F
Optical System	– Light Source: 7*40W RGBW LEDs – LED Lifespan: ≥50,000 hours – Color temperature: 2,800K–7,000K – Zoom: 3° – 60°
Movement	– Horizontal: 540°, accuracy 2.11°/step, fine-tuning accuracy: 0.008° – Vertical: 270°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034° – Automatic pan/tilt position correction – Photoelectric Reset System: Precisely and automatically corrects X-axis/Y-axis position
Effects	– High-efficiency motorized optical zoom system – Full-range dimming, 65536 levels of dimming accuracy – fast flicker 1-25Hz – single-point control of LED beads – integrated color, beam, and bee-eye effects – multiple preset color macro functions – multiple preset effect macro functions
Work Environment	– Protection Rating: IP20
Electric Parameter	– Input Voltage: AC100-240V, 50-60Hz – Power: 289W – Power Socket: PowerCon input/output
Dimension and weight	– Product Size: 344258178mm – Net Weight: 5.6kgs
