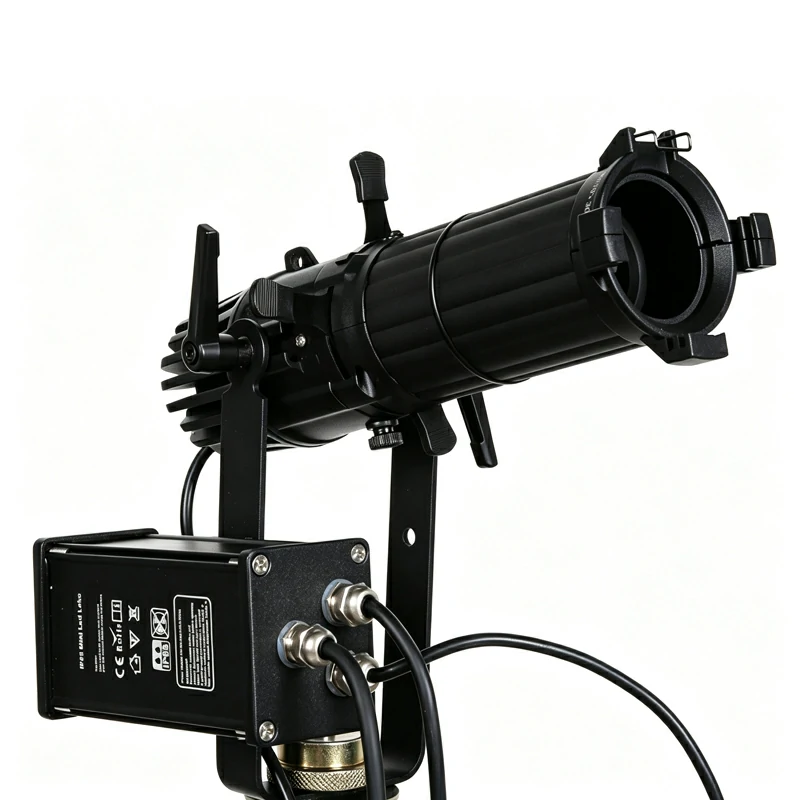

30W Mini Profile Light
30W Mini Profile Light
The IP65 MINI PROFILE 30MZ WW/CW is a compact, fan-less 30W COB LED profile light with manual zoom, CRI≥90, and 4 metal cutting slots for outdoor use. Read More +
Get a Quote
CE Certification
ISO Standards
RoHS Certificate
Share Products
Light Source
1×30W COB LED (WW/CW optional)
Lifespan
50,000 hours
Beam Angle
12°-30° or 25°-50° (Manual Zoom)
CRI
Ra≥90
30W Mini Profile Light
Products Brochure
Product Description
Appearance and light effect
This 30W mini profile light combines IP65 outdoor protection with CRI≥90 output, manual zoom (12°-30° or 25°-50°), and 4 metal spot cutting slots.
Its die-cast aluminum body is small, lightweight, and fan-less — delivering silent, low-power performance in any outdoor environment.
Characteristics of the product
-
Light source: 1×30W COB LED (WW/CW optional)
-
Lifespan: 50,000 hours
-
CRI: Ra≥90
-
Beam angle: 12°-30° or 25°-50° (Manual Zoom)
-
Cutting slots: 4 Metal spot cutting slots
-
Dimming: 0-100% smooth linear, 4 curves
-
Dimming frequency: 500-25000Hz optional
-
Strobe: 1-25 times/sec
-
DMX: 1/3 CH, RDM/DMX512, master-slave, static
-
Cooling: Fan-less no noise
-
IP rating: IP65
-
Working temp: -10℃~40℃
-
Power: 30W, AC100-240V 50/60Hz
-
Housing: Die-cast aluminum, small & lightweight
-
Size: 260×120×220mm
-
Net weight: 2.18kg
Specification
| Model | 30W Mini Profile Light |
| Optical System |
1*30W COB LED (Warm White or Cool white optional) 50,000 hours life span and low power consumption Color Rendering Index(CRI): Ra≥90 High quality optical system and field uniformity Beam Angle: 12°-30° or 25°-50°(Manual Zoom) |
| Working environment |
IP65 protection rating Fan-less no noise cooling system Working Temperature: -10℃~40℃ |
| Color System |
1*30W COB LED (Warm White or Cool white optional) |
| Effect |
4 Metal spot cutting slots 4 kinds of dimming curve Dimming Frequency: 500 – 25000Hz optional 0-100% Smooth linear dimmer Strobe:1-25times/sec |
| Electric Parameter |
Input Voltage:AC100-240V 50/60Hz Max. Power: 30W 1/3DMX channels RDM/DMX512, master-slave, or static mode 3-Pin XLR connectors IN/OUT |
| Dimension and weight |
Dimensions: 260*120*220mm Packing Size: 48*23*14.5cm(1pc/carton), 48.5*48*32cm(4pcs/carton) Net Weight: 2.18kg Gross Weight: 3.5kg |
Control
RDM/DMX512, master-slave, or static mode
1/3 DMX channels
3-Pin XLR connectors IN/OUT
