LED200W Profile light-Manual Zoom

LumenCore Profile-200Z-C4

LumenCore Profile-200Z-C4 is a 220W full-color zoom profile light with manual zoom, 2700-10000K CCT, DUV adjustment, and RDM/DMX control. Read More +

Get a Quote

CE Certification

ISO Standards

RoHS Certificate

Light source

LED 24*24W 5050 full color

Zoom model

manual zoom

CRI

average ≥96

TLCI

average ≥96

LED200W Profile light-Manual Zoom

Products Brochure

Product Description

Appearance and light effect

This LED full color zoom profile light delivers 220W of power with manual zoom (10-20°、15-30°、25-50°), a wide 2700-10000K color temperature range, and precise DUV plus-minus adjustment.

It offers 16-bit flicker-free linear dimming with 7 dimming modes, 360-degree hue and chroma saturation control, plus DMX/RDM and master/slave operation.

Characteristics of the product

Input voltage: 100-240V 50-60HZ

Power rating: 220W

Manual zoom: 10-20°、15-30°、25-50°

Color temp: 2700-10000K

DUV: plus-minus adjustable

Hue: 360-degree hue adjustable

Chroma saturation: adjustment

Dimming: 16 bit above no flicker linear dimming / 7 dimming modes

Stroboflash: available

Control: DMX control or manual button control / RDM function

Specification

Model	LumenCore Profile-200Z-C4
Optical System	– Light Source: LED 24*24W 5050 full color – Most output power:White color-220W, Red-55W,Green-110W,Blue-110W – Color Temperature: Adjustable 2700–10000K – Color Rendering: CRI ≥96 (avg), TLCI ≥96 (avg)
Effects	– Pure, uniform beam without artifacts – Beam Angle: Selectable 10–20°, 15–30°, or 25–50° – Color Rendering: CRI ≥96 (avg), TLCI ≥96 (avg) – Dimming: 0–100% smooth dimming function – ≤12% brightness error; ≤3% CCT deviation
Electrical & Interface	– Voltage Range: AC100–240V, 50/60Hz – Power rating: 220W
Work Environment	– Protection Level: IP20 – Operating temp: –25℃ to 40℃

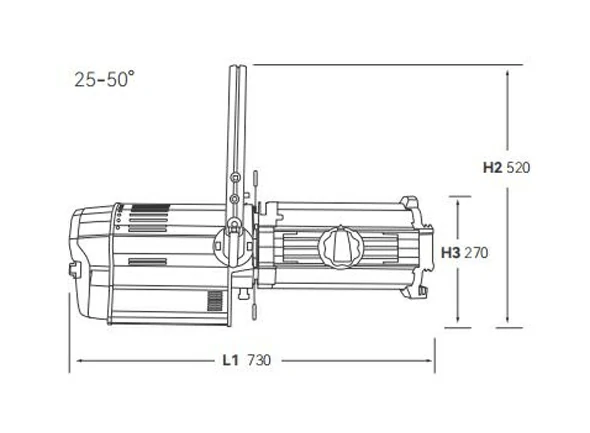

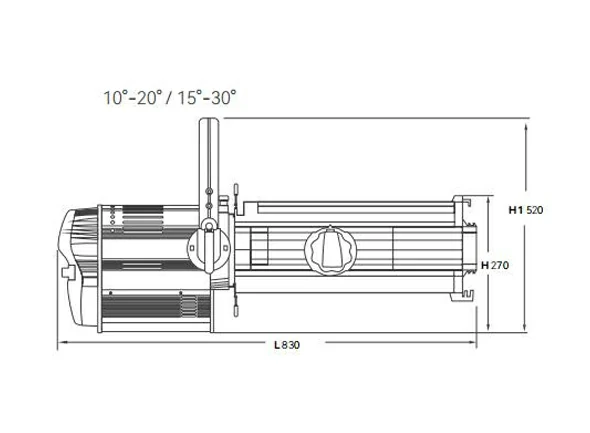

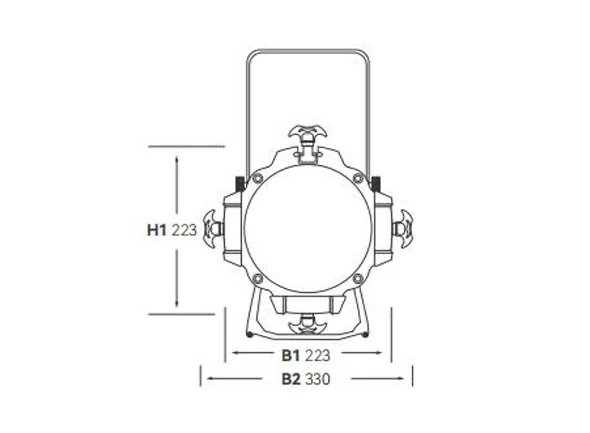

Dimension & Weight	– Size: 770 × 290 × 290 mm – Weight: 14.2 kg

Control

Control: DMX signal control or button key control, knob to control dim, CCT, DUV
Control signal: DMX control, with RDM function
DMX channel: 4-channel, 12-channel, and 13-channel modes
