TV-LED800/TV-LED800H

TV-LED800/TV-LED800H

LED800 with Linear CMY color mixing + Linear CTO color correction+framing shutter. Light source is 750W White LED Module . Read More +

icon_ce

CE Certification

icon_iso

ISO Standards

icon_rohs

RoHS Certificate

TV-LED800
TV-LED800_01
TV-LED800_02
TV-LED800_03
light

Light source

OSRAM LED 720W Module

sun

Color temperature

7500K

heart

Power

1050W(90V)

Service life

≥20000hours

Framing Shutter LED800 Moving Head Light

Product Description

Appearance and light effect

TV-LED800/TV-LED800H adopts OSRAM 750WWhite LED Module, has a stylish appearance and efficient optical system. The color temperature can reach 7500K,the illumination is up to 22,000 lux under the beam mode.

Excellent optical system

Full of sharpness and the excellent beam output creates a strong visual impact for the stage performance. Excellent optical system design, CMY color mixing system, and CTO color temperature correction system can precisely control light’s color, it's pure and gorgeous!

Characteristics of the product

1. LED800 with CMY + Iris + Framing Shutter.

2. Light Source:OSRAM 750W White LED Module .

3.1 Color wheel: 6color+white, Half-color effect, color can be positioned arbitrarily, rainbow effect with two-way rotation

4. 1 fixed gobo wheel: 8 pattern filter + white.

5. 1 rotating gobo wheel: 6 gobos + white.

6.4x fast and smooth framing shutters, each individually controllable, and the entire framing module can be rotated ±45°

7. Display: Rechargeable battery.

8. Control mode: DMX512, Art-net, RDM, SACN.

9. SACN remote upgrade.

Specification

Model TV-LED800/TV-LED800H
Voltage Voltage: AC100-240V, 50/60Hz

Power: 1050W (90V)

Light source Light source: OSRAM750W White LED Module

Color temperature: 7500K

Lifetime: ≥20000hours

CRI: 800≥70/800H≥90

Luminous flux: 22000lm

Working environment IP20/-10℃ ~ 45℃
X/Y X: 540°(16 bit precision scan)

Y: 270°(16 bit precision scan)

Automatic error correction reset function

Color CMY+CTO system

1 Color wheel: 6color + white, half-color effect, color can be positioned arbitrarily, rainbow effect with two-way rotation

Control mode DMX512, Art-net, RDM, SACN
Prism 2 prism wheel: 6th-order strip prism + 4 prism, positive and negative rotation, has a prism positioning function, 16 macro functions
Display Display: Rechargeable battery, Chinese and English languages can be switched, the display can be reversed 180°

Reset detection: Without DMX signal, manual detection and automatic detection can be selected to facilitate inspection and maintenance

Effect 2 prism: wheel:6th-order strip prism + 4 prism, positive and negative rotation
Gobo 1 fixed gobo wheel: 8 pattern filter + white

1 rotating gobo wheel: 6 gobos + white, pattern jitter and pattern arbitrary positioning function

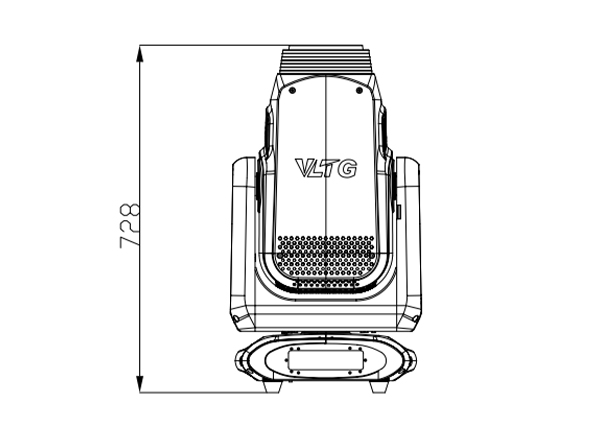

Size & weight Product size: 728*400.5*263.9mm

Net weight: 29.8kgs

Control

Control mode: DMX512, Art-net, RDM, SACN

Control channel: 37/53

Input signal isolation protection function

Wireless DMX512 control (optional)

Can be upgraded via DMX data line, or SACN remote upgrade

Can change the DMX address code, machine reset and other functions from the console

Video of TV-LED800/TV-LED800H

WIDE RANGE OF APPLICATIONS

Suitable for large-scale concerts, stage performances, theatres, television studios, lighting projects, exhibitions.
