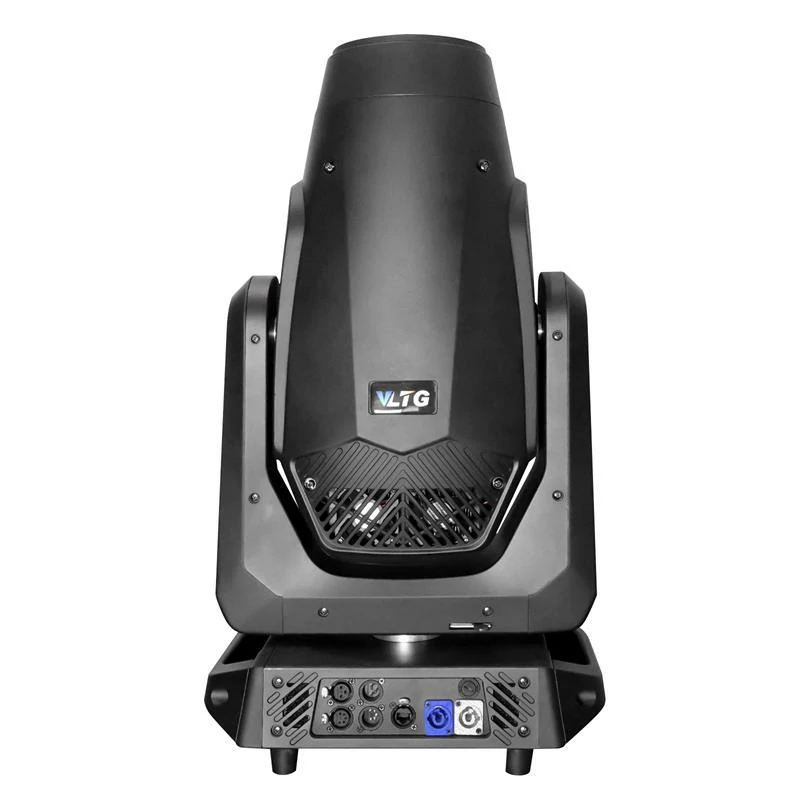

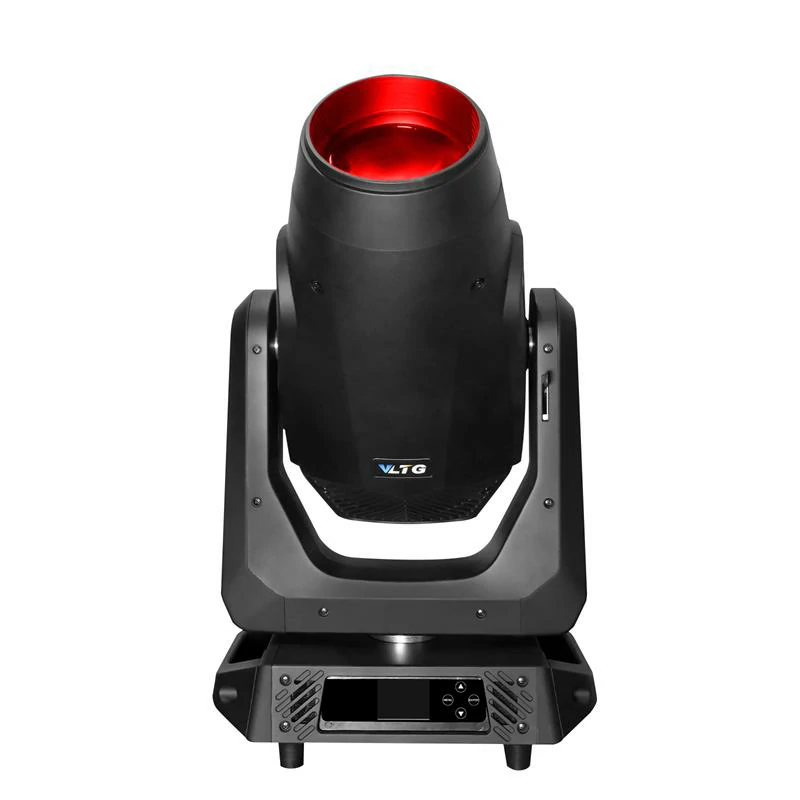

LED MOVING HEAD LIGHT BSWF/TV-LED500
TV-LED500
450W LED Engine profile with framing and CMY function. Dedicated to fulfilling the demand of large performances and Theater installations. Read More +
CE Certification
ISO Standards
RoHS Certificate
Light Source
450W LED Engine
Color System
CMY+CTO(3200K-6500K)
CRI
Standard: Ra≥70; HCRI: Ra≥95
Net Weight
26.9kgs
LED500 Profile Moving Head Light
Product Description
Appearance and light effect

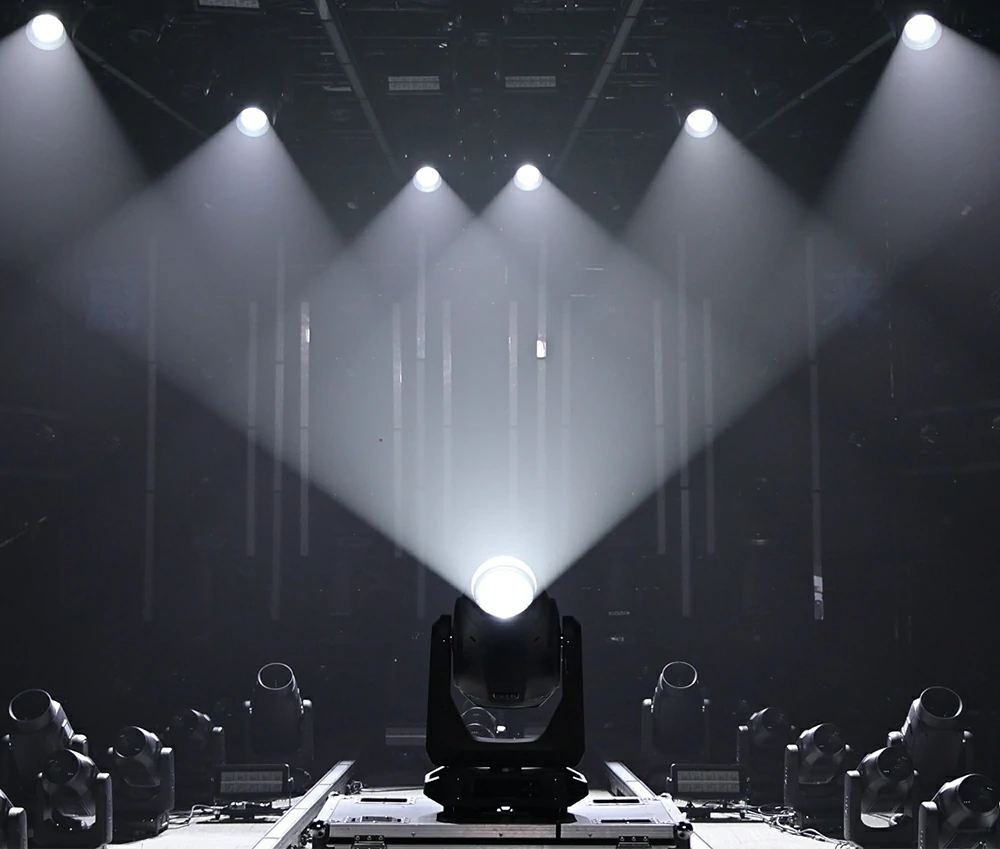

LED PROFILE MOVING HEAD LIGHT BSWF/TV-LED500 adopts 450W White LED Module, which has a stylish appearance and efficient optical system. With three noise modes (Auto, Theater, and Silent), the system balances performance and low noise for versatile environment adaptation.
Excellent optical system
With razor-sharp focus and powerful beam output, it delivers striking visual impact for stage performances. The advanced optical system, combined with CMY color mixing and CTO temperature correction, ensures precise, pure, and vibrant color control.
Characteristics of the product
● Light source: 450W LED module (lifespan: ≥20000h)
● CRI: TV-LED600: 70+, TV-LED600H: 95+
● CMY+CTO(3200K-6500K)
● Linear dimmer from 0% to 100%

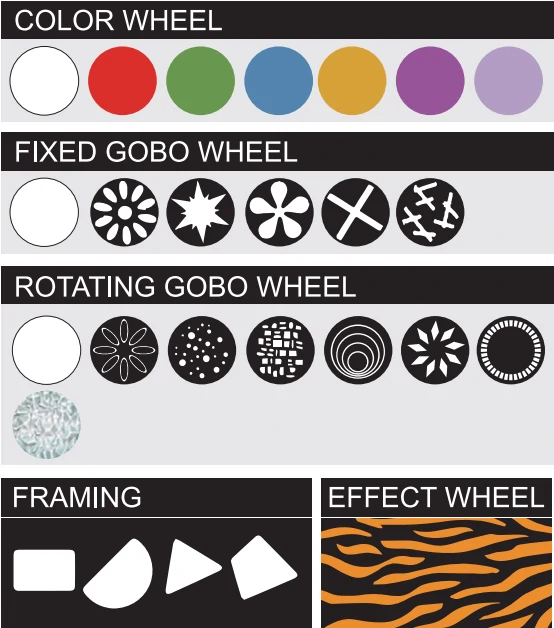

● Fixed color wheel with 7 dichroic colors + White
● Fixed gobo wheel with 5 gobos + Open
● Rotating gobo wheel with 7 replaceable gobos + Open, 1 effect wheel
● Framing: 4 blades with +/- 75° rotation of the full system
Specification
Model | TV-LED500 |

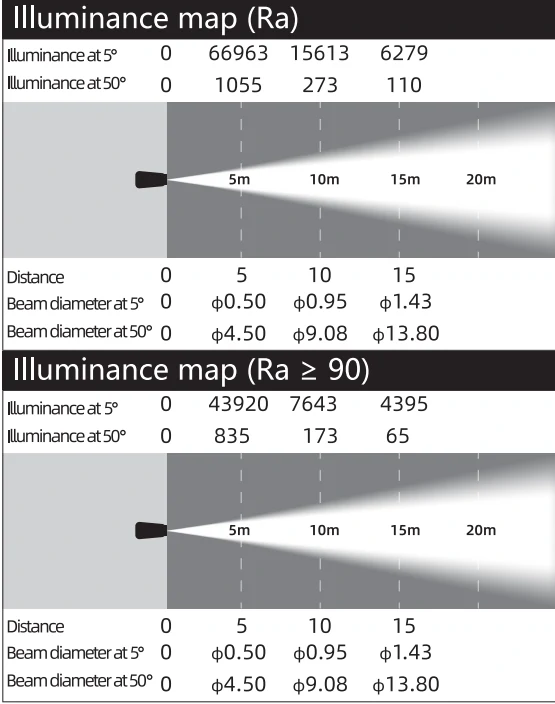

Optical System | – Light Source: 450W LED Module (Lifespan: ≥20000h) – Fixture Output: 16,000lm – Color Temperature: 6700K – Standard Mode: Ra≥70; HCRI Mode: Ra≥95; |
Movement | – Pan/Tilt: 540/270° (16 bit) – Pan & Tilt lock – Auto X/Y repositioning |
Color System | – Linear CMY color mixing – Linear CTO(3200K-6500K) – Fixed color wheel with 7 dichroic colors + White |
Gobo System | – 1 fixed gobo wheel with 5 gobos + Open – 1 rotating gobo wheel with 7 replaceable gobos + Open – 1 effect wheel |
Framing System | – 4 blades with +/- 75° rotation of the full system |
Effects | – Zoom: 5°-49° – Prism: Rotating 4-facet circular prism & Inline 6-prism – Frost filters: Medium – Electronic Dimming: 0-100% – Iris: Motorized iris – Strobe:1-25 Hz |
Work Environment | – Protection Rating: IP20 – Working Environment: -10℃- 45℃ |
Electric Parameter | – Power Supply: 100~240V, 50/60Hz – Power: 560W (220V), power factor: PF ≥0.98 |

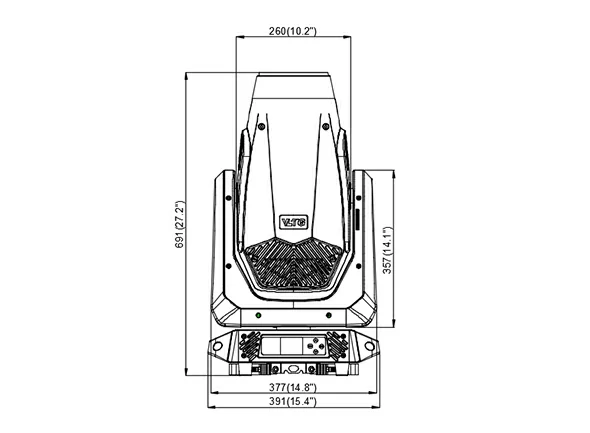

Dimension and weight | – Product Size: 691*391*266mm – Net Weight: 26.9kgs |
Control
DMX channel: 33/49 CH
Art-net, SACN, RDM and Standrad DMX512 control
Signal input/output: 5pins & 3pins XLR, RJ45 interface.
Power: PowerCON TRUE1 Power input
