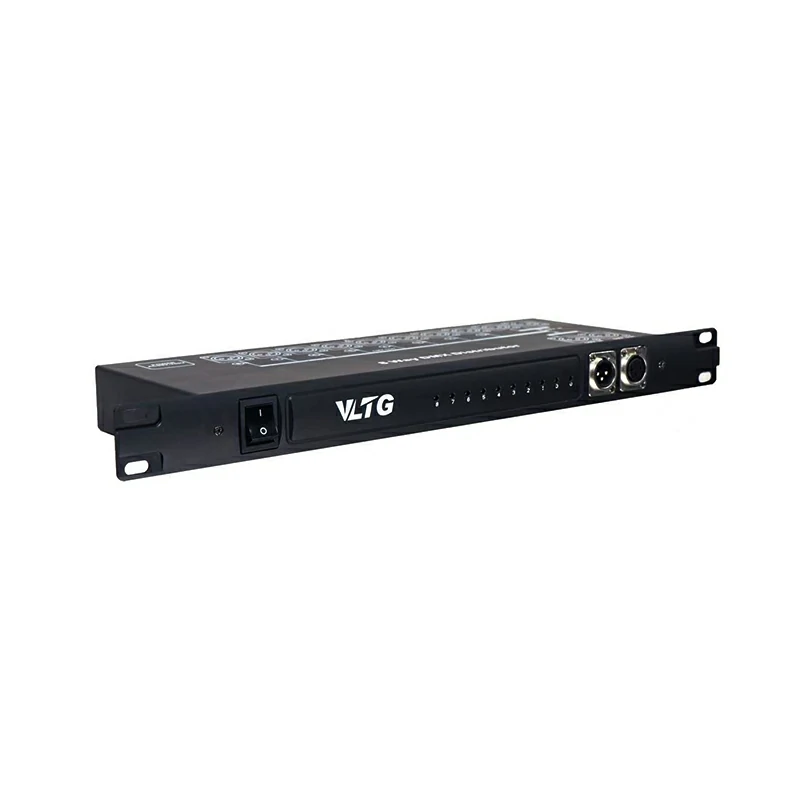

8-Channel DMX Signal Distributor
TV-8 AMPLIFIER
This 8-channel DMX512 signal distributor features 2-in 8-out, three-core XLR interfaces, and full signal isolation for stable, interference-free DMX transmission. Read More +
CE Certification
ISO Standards
RoHS Certificate
Voltage
AC 100–240V, 50/60Hz
Transmission Signal
International standard DMX512
DMX Signal Output
8-channel
Interface Type
Three-core XLR male and female sockets
8-Channel DMX Signal Distributor
Product Description
Clean Design, Stable Signal Output
This 8-channel DMX512 signal distributor offers two inputs and eight outputs with three-core XLR male and female sockets for parallel connection.
Each channel includes an independent amplifier and signal indicator, with anti-high voltage protection and complete isolation between input and output signals (including signal ground).
Characteristics of the product
-
Voltage: AC 100–240V, 50/60Hz
-
Transmission signal: International standard DMX512
-
Interface type: three-core XLR male and female sockets (input) / three-core XLR female socket (output)
-
DMX512 signal output: 8-channel, two in and eight out
-
Protection: anti-high voltage protection, input and output signals (including signal ground) completely isolated
-
Channel: Each channel has independent amplifier and signal indicator
Specification
| Model | TV-8 AMPLIFIER |
| Voltage |
AC 100–240V, 50/60Hz |
| Transmission signal |
International standard DMX512 |
| Interface type |
The input signal interface adopts three-core XLR male and female sockets for parallel connection, and the output signal interface adopts three-core XLR female socket |
| DMX512 signal output
|
8-channel DMX signal distributor, two in and eight out |
| Protection
|
With anti-high voltage protection measures, input and output signals (including signal ground) are completely isolated |
Control
Control Protocol: International standard DMX512
DMX Signal Output: 8-channel, two in and eight out
