Moving Head Beam Light-TV-N500BEAM

TV-N500BEAM

TV-N500BEAM is VLTG hot selling mini beam moving head light. It's famous for its small size but high brightness. The light source is original OSRAM 420W bulb lamp.Read More +

icon_ce

CE Certification

icon_iso

ISO Standards

icon_rohs

RoHS Certificate

light

Light source

OSRAM SIRIUS HRI®420WS

sun

Color temperature

CTO(2800K-7700K)

heart

Illuminance

850000LUX @10 meters

Net Weight

23.8 kgs

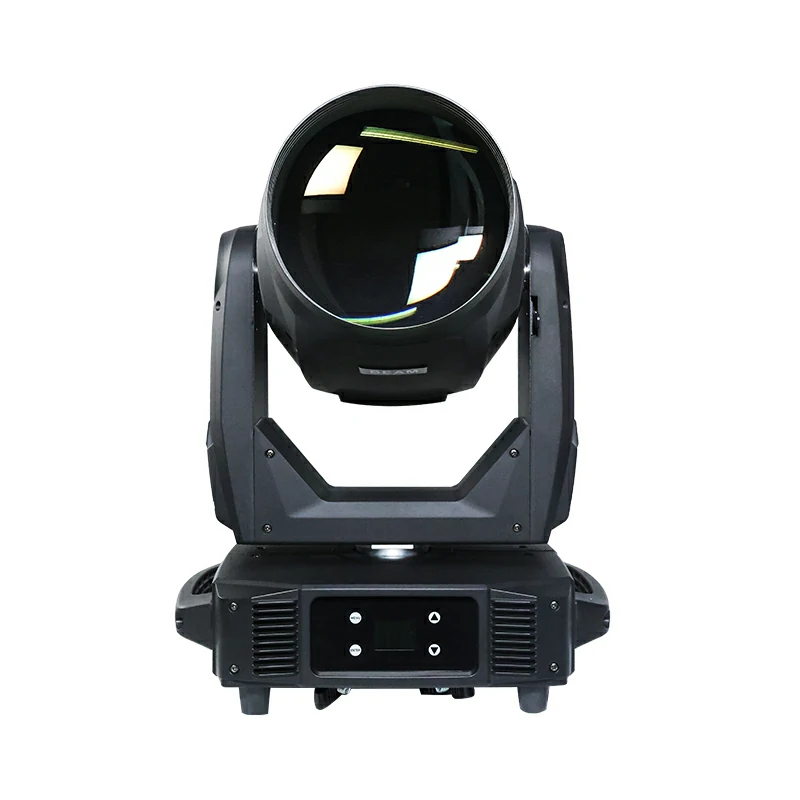

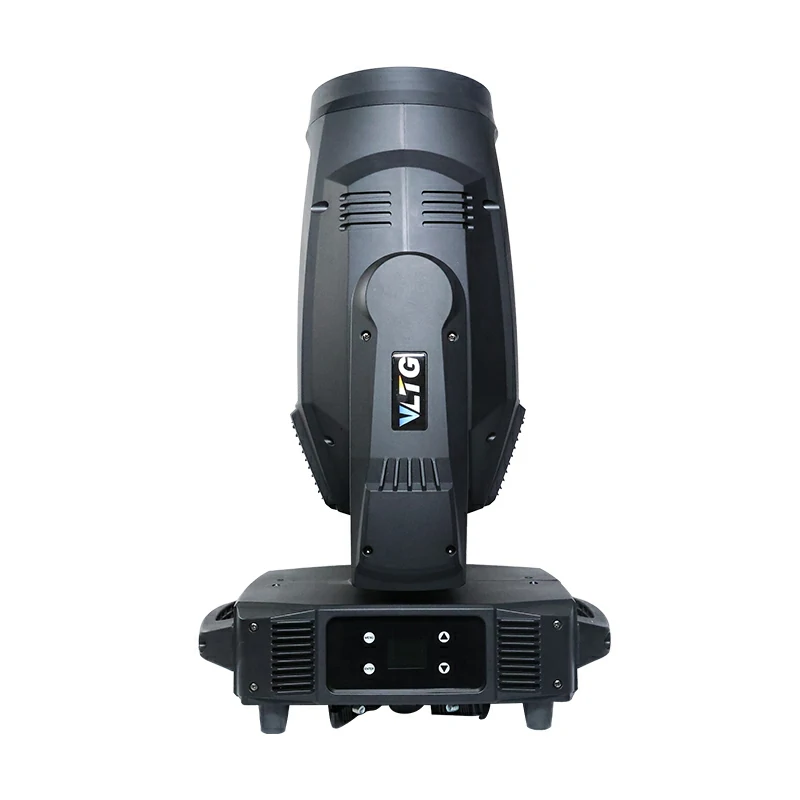

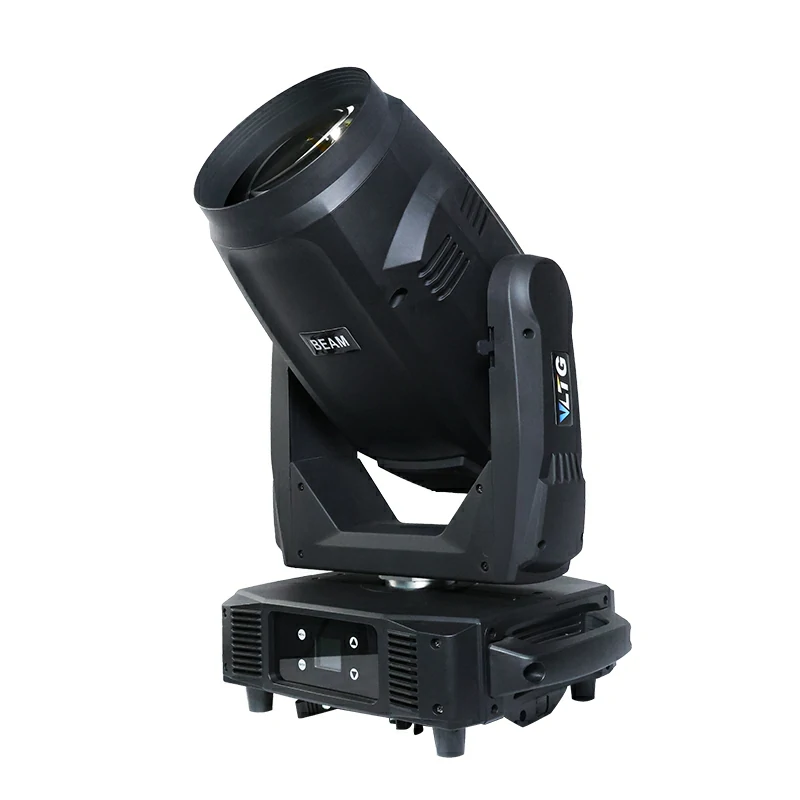

Beam500 Moving Head Light

Product Description

Appearance and light effect

High brightness: large lens 190mm for intense beam projection, Illuminance: 850000LUX @10 meters, ideal for outdoor large-scale performances.

4 Prisms, 8 Effects: 3 independent effect patterns combined with prisms can superimpose up to 80 built-in dynamic effects.



Characteristics of the product

● Light source: OSRAM SIRIUS HRI®420WS

● Lens: 190mm; Illuminance: 850000LUX @10 meters

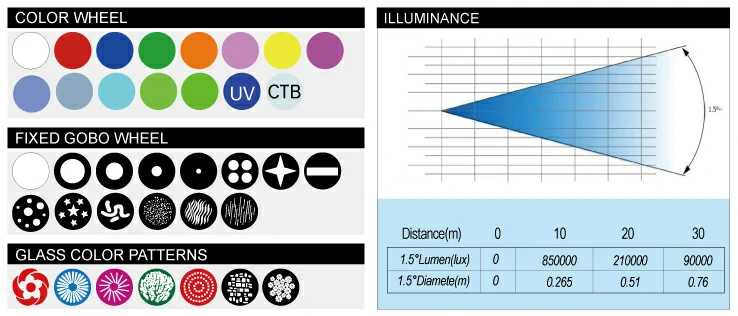

● 1 color plate: 13 colors + color filter + white light

● 10 patterns + 3 effect patterns + white circle, with pattern jitter and pattern arbitrary positioning function

● Disc 1: 24 prisms + 48 honeycomb prisms;

● Disc 2: 8 prisms + 6 rows of mirrors. They can be superimposed to create infinite dynamic and infinite beam effects

Specification

ModelTV-N500BEAM
Optical System– Light Source: ORSAM SIRIUS HRI®420WS (Lifespan: ≥3000h)

– Color temperature: 2800K-7700K (CTO linearly adjustable)

– Illuminance: 850000LUX @10 meters

– Optical lens diameter: 190mm

Movement– Pan/Tilt: 540/270° (16 bit)

– Pan & Tilt lock

– Auto X/Y repositioning

Color System– 1 color plate: 13 colors + color filter + white light
Gobo System– 10 patterns + 3 effect patterns + white circle, with pattern jitter and pattern arbitrary positioning function
Effects– 3 independent effect patterns combined with prisms can superimpose up to 80 built-in dynamic effects

– Prims Disc 1: 24 prisms + 48 honeycomb prisms;

– Prims Disc 2: 8 prisms + 6 rows of mirrors. They can be superimposed to create infinite dynamic and infinite beam effects

– Dimming/strobe: 0%-100% smooth dimming, multiple speed strobe effects.

– Atomization: independent atomization soft light effect

Work Environment– Protection Rating: IP20

Working Environment: -10℃-  45℃

Electric Parameter– Power Supply: 90-265V~ 50/60Hz

– Power: 500W (220V), power factor: PF ≥0.98

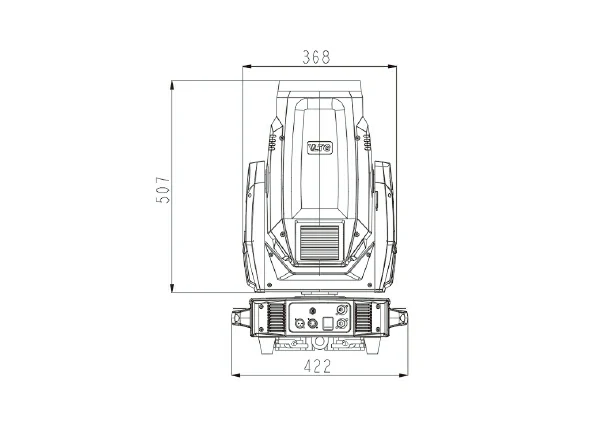

Dimension and weight– Product Size: 653*301*422mm

– Net Weight: 23.8kgs

Control

High-temperature automatic protection

Standard DMX512 protocol

DMX channel: 17/21CH

RDM function



Video

STAGE LIGHTING EFFECTS

Suitable for large-scale concerts, stage performances, theatres, television studios, lighting projects, exhibitions.
